Mastering Screen Printing Halftones: Expert Techniques in Photoshop

As a plastisol ink supplier, understanding the intricacies of screen printing halftones is crucial for producing high-quality prints. In this comprehensive guide, we’ll explore expert techniques for creating and optimizing halftones in Photoshop, specifically for screen printing applications.

Understanding Screen Printing Halftones

Before diving into the technical aspects, it’s essential to grasp the concept of screen printing halftones. Halftones in screen printing are patterns of dots that create the illusion of continuous tone images. By varying the size and spacing of these dots, we can reproduce photographs, gradients, and complex illustrations using a limited number of ink colors.

Screen printing halftones allow us to achieve depth and texture in our designs, making them an indispensable tool for any screen printer. Whether you’re working on a single-color design or a complex CMYK halftone screen printing project, mastering halftones will elevate the quality of your prints.

Why Halftones Matter in Screen Printing

The importance of halftones in screen printing cannot be overstated. Here are some key reasons why mastering halftones is crucial:

1. Reproduce complex images: Screen printing halftones enable us to print photographs and intricate designs that would be impossible with solid colors alone.
2. Create depth and dimension: By using halftones, we can add shading and gradients to our prints, giving them a more realistic and professional appearance.
3. Optimize ink usage: Halftones allow us to create the illusion of multiple shades using a single ink color, potentially reducing costs and simplifying the printing process.
4. Enhance versatility: With screen printing halftones, we can adapt to various substrates and printing conditions while maintaining image quality.

Step-by-Step Guide: Creating Halftones for Screen Printing in Photoshop

Now, let’s walk through the process of converting an image to halftone for screen printing using Adobe Photoshop. This method is ideal for creating halftones for screen printing, offering precise control over the final output.

1. Selecting and Preparing the Image

The first step in creating halftones for screen printing is choosing the right image. Remember, the quality of your original image significantly impacts the final result. Here are some tips:

• Choose high-resolution images with good contrast
• Avoid images with too many fine details, as they may be lost in the halftone process
• Consider the final print size when selecting your image

Once you have your image, open it in Photoshop and make any necessary adjustments to contrast and brightness.

2. Converting to Grayscale

For most screen printing halftones, we’ll start by converting the image to grayscale. This simplifies the halftoning process and ensures consistent results. To convert your image:

1. Go to Image > Mode > Grayscale
2. Click “Discard” when prompted about color information
3. Use Control+M (or Command+M on Mac) to fine-tune the grayscale values if needed

3. Applying the Halftone Screen

Now comes the crucial part of creating halftones for screen printing – applying the halftone filter. Follow these steps:

1. Go to Image > Mode > Bitmap
2. In the “Output Resolution” field, enter a value 2-4 times higher than your input resolution
3. For “Method,” choose “Halftone Screen”
4. Click “OK” to open the Halftone Screen options

4. Fine-Tuning Halftone Settings

When creating halftones for screen printing, several key settings affect the final output:

• Frequency (Lines per Inch or LPI): This determines the size of your halftone dots. For screen printing halftones, a range of 45-55 LPI often works well, but adjust based on your specific needs.
• Angle: This affects how the dots align. For single-color halftones, 22.5° or 45° are common choices.
• Shape: Choose between round, elliptical, or other dot shapes. Round dots are most common for screen printing halftones.

Experiment with these settings to achieve the desired effect for your screen printing halftones.

5. Previewing and Adjusting

After applying the halftone screen, preview your image at 100% zoom to check the result. If necessary, undo and adjust your settings. Remember, creating perfect screen printing halftones often requires some trial and error.

6. Preparing for Print

Once you’re satisfied with your halftone for screen printing, it’s time to prepare for the actual printing process:

1. Consider your screen mesh count: Higher mesh counts (230-280) often work best for halftones screen printing.
2. Think about your substrate and ink: Different materials may require adjustments to your halftone settings.
3. Prepare your screens with high-quality emulsion for the best results.

Advanced Techniques for Screen Printing Halftones

As you become more comfortable with basic halftones for screen printing, consider exploring these advanced techniques:

CMYK Halftone Screen Printing

CMYK halftone screen printing allows for full-color reproduction using just four ink colors. To create CMYK halftones:

1. Separate your image into CMYK channels in Photoshop
2. Create a halftone for each channel, using different angles to avoid moiré patterns
3. Print each color separately, ensuring precise registration

Creating Halftones for Screen Printing in CorelDRAW

While Photoshop is our preferred tool, CorelDRAW halftone screen printing is another viable option. CorelDRAW offers powerful bitmap-to-vector conversion tools that can be useful for certain types of halftone designs.

Experimenting with Dot Shapes

While round dots are standard for screen printing halftones, don’t be afraid to experiment with other shapes. Elliptical, square, or even custom shapes can create unique effects in your prints.

Troubleshooting Common Halftone Screen Printing Issues

Even with careful preparation, issues can arise when printing halftones. Here are some common problems and solutions:

1. Moiré patterns: If you notice unwanted patterns in your print, try adjusting the angle of your halftone screen.
2. Loss of detail: If fine details are disappearing, consider increasing your LPI or adjusting your exposure time.
3. Dot gain: If your print appears darker than expected, compensate by reducing the size of your halftone dots in Photoshop.

Best Practices for Screen Printing Halftones

To ensure consistently high-quality results when working with screen printing halftones, keep these best practices in mind:

1. Always start with high-quality images
2. Experiment with different LPI settings to find what works best for your setup
3. Use high-quality screens and emulsion for crisp halftone reproduction
4. Practice regularly to refine your technique
5. Keep detailed records of your settings for future reference

The Future of Screen Printing Halftones

As technology advances, so do the possibilities for screen printing halftones. Here are some trends to watch:

1. Digital halftone generation: AI-powered software may soon offer even more precise control over halftone creation.
2. Hybrid printing techniques: Combining screen printing halftones with other printing methods for unique effects.
3. Eco-friendly inks: New ink formulations may offer improved halftone reproduction while being more environmentally friendly.

Conclusion: Mastering the Art of Screen Printing Halftones

Creating perfect screen printing halftones is both an art and a science. By understanding the principles behind halftones and mastering the techniques for creating them in Photoshop, you can take your screen printing to the next level.

Remember, the key to success with screen printing halftones lies in experimentation and practice. Don’t be afraid to try different settings, techniques, and approaches. With time and experience, you’ll develop an intuitive understanding of how to create the perfect halftone for any project.

Whether you’re working on a simple one-color design or a complex CMYK halftone screen printing project, the skills you’ve learned in this guide will serve you well. Keep refining your technique, stay curious, and never stop pushing the boundaries of what’s possible with screen printing halftones.

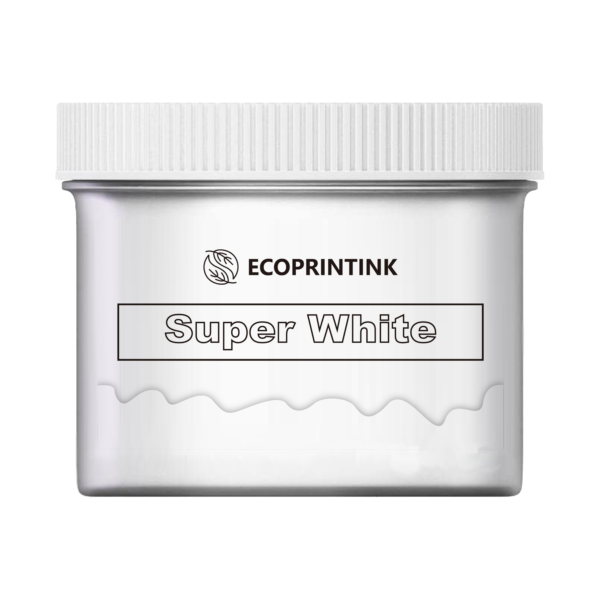

As a plastisol ink supplier, we’re committed to providing you with the highest quality materials to bring your halftone designs to life. By combining our superior inks with your mastery of screen printing halftones, there’s no limit to what you can create.
